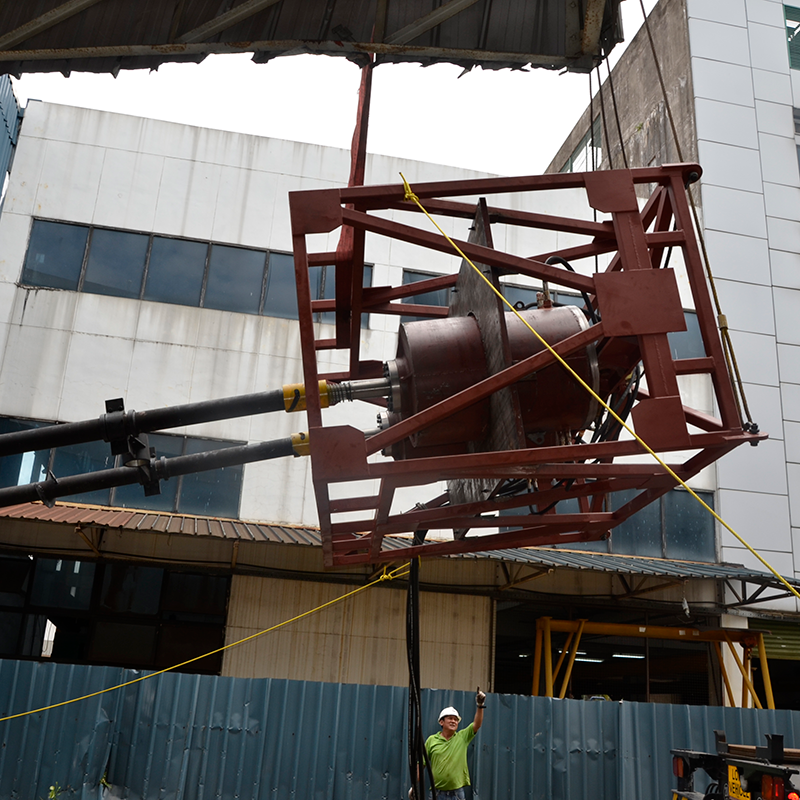

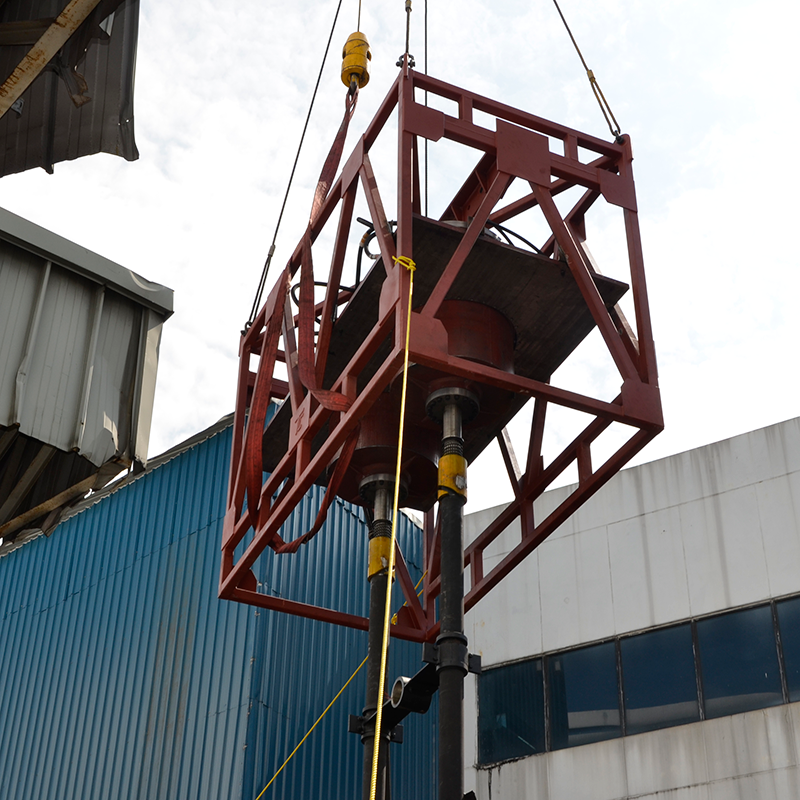

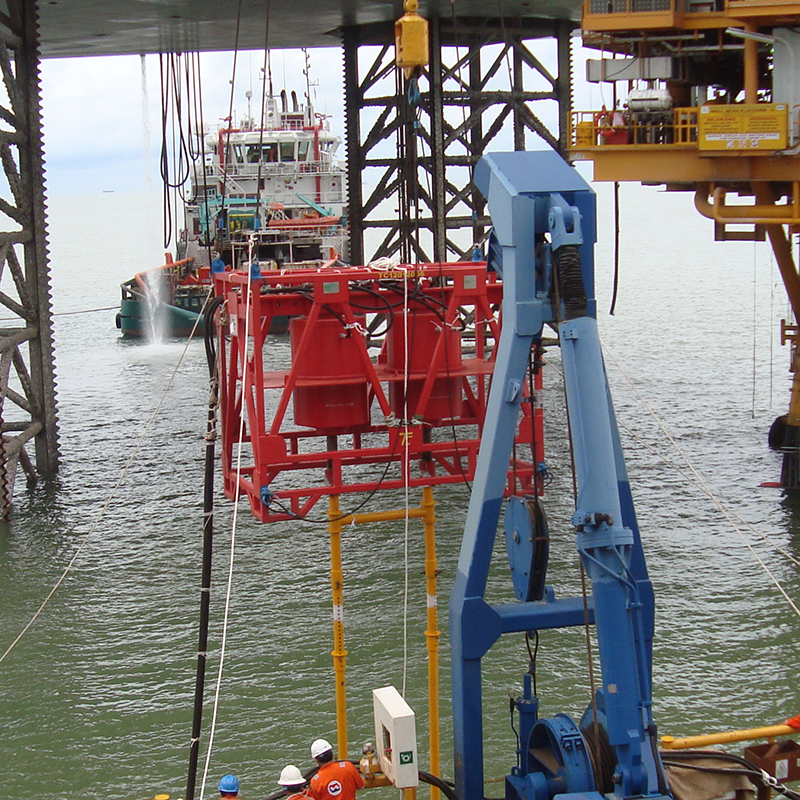

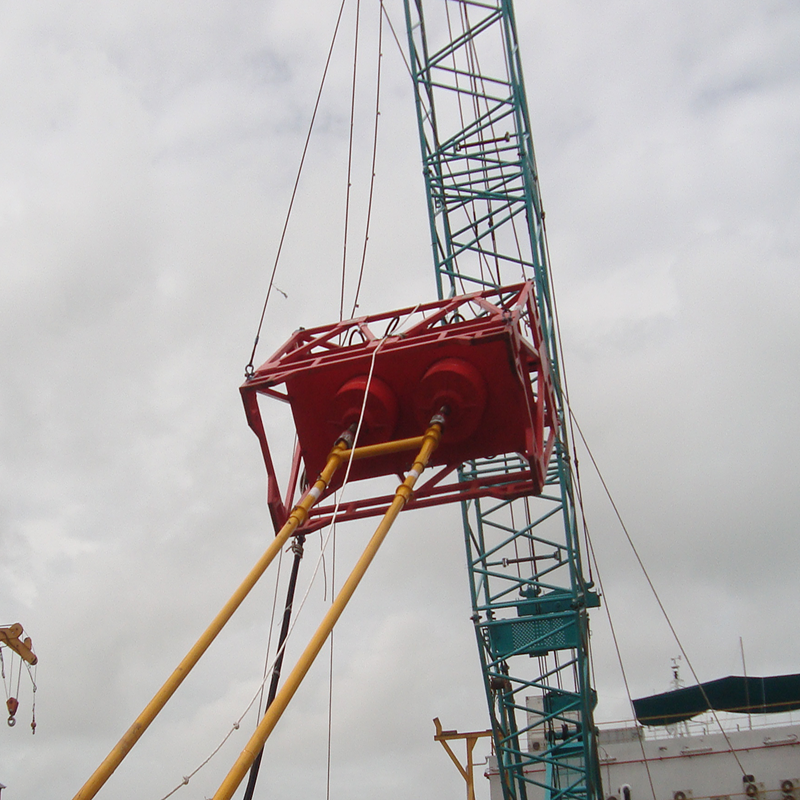

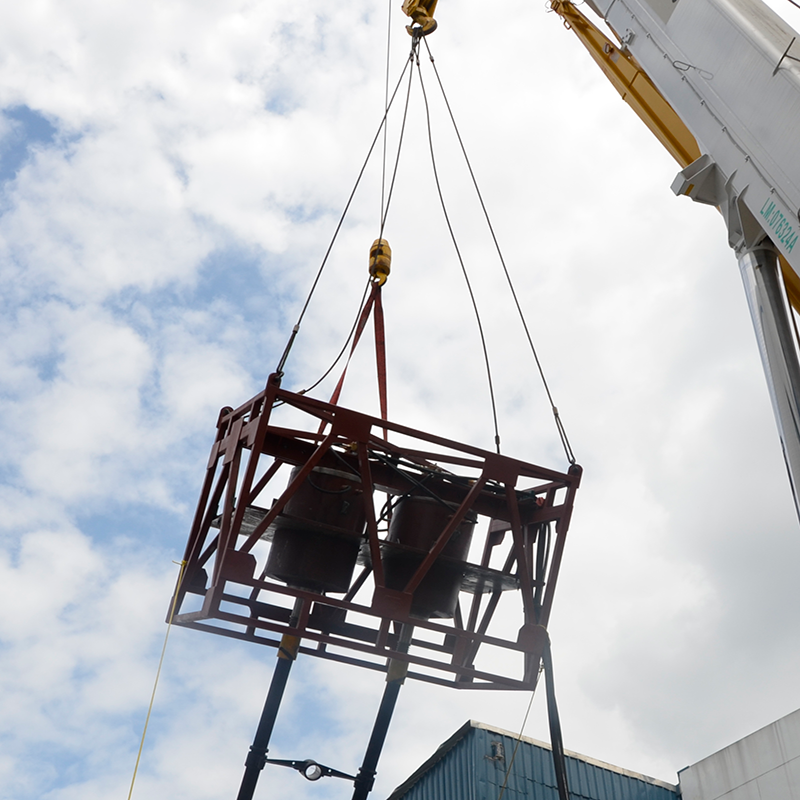

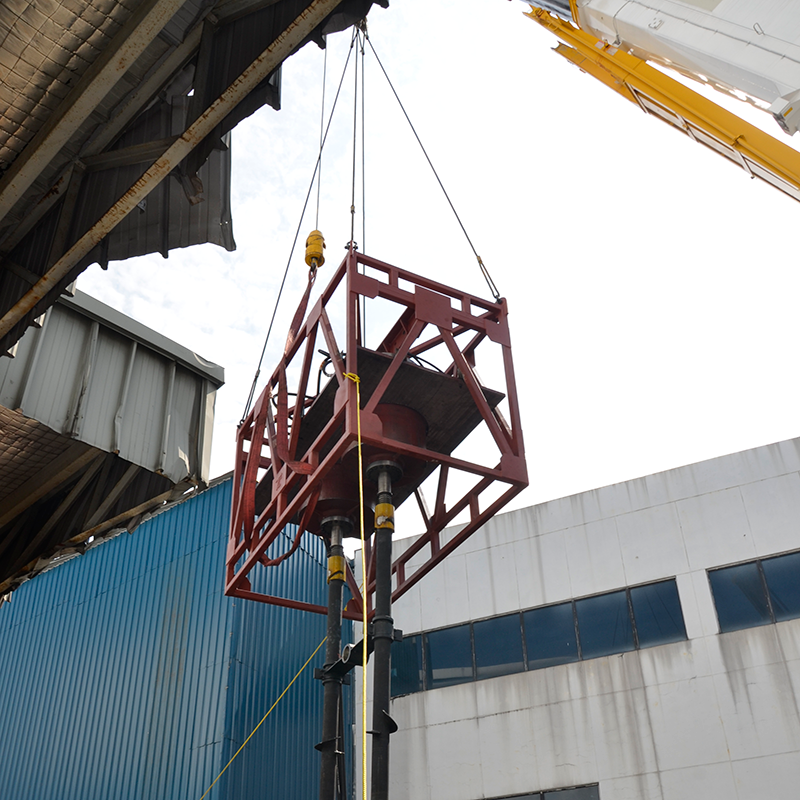

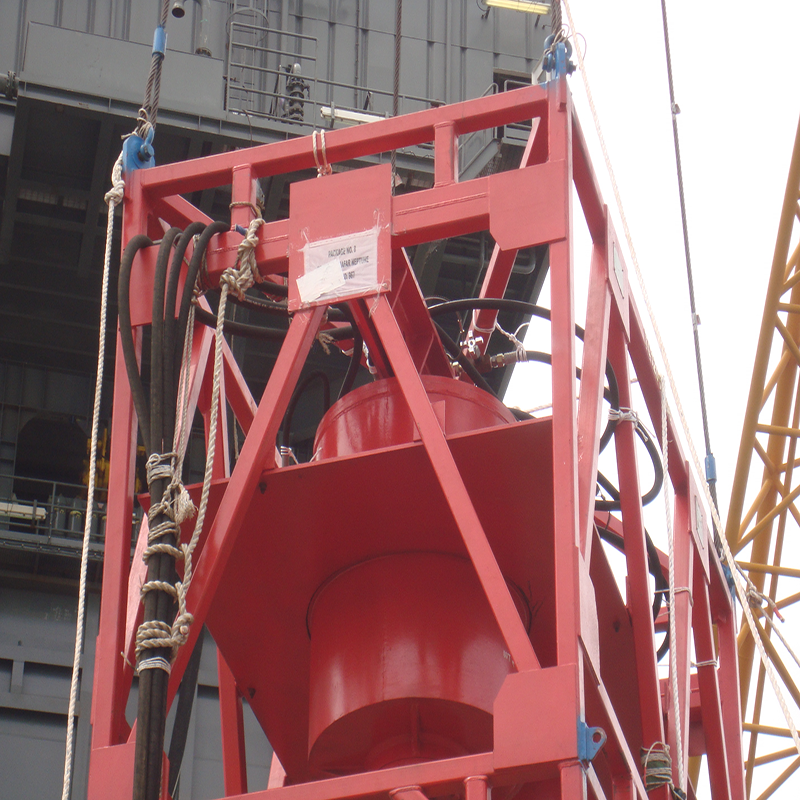

13.1 TON ANCHOR PIPE SYSTEM
$2,500.00

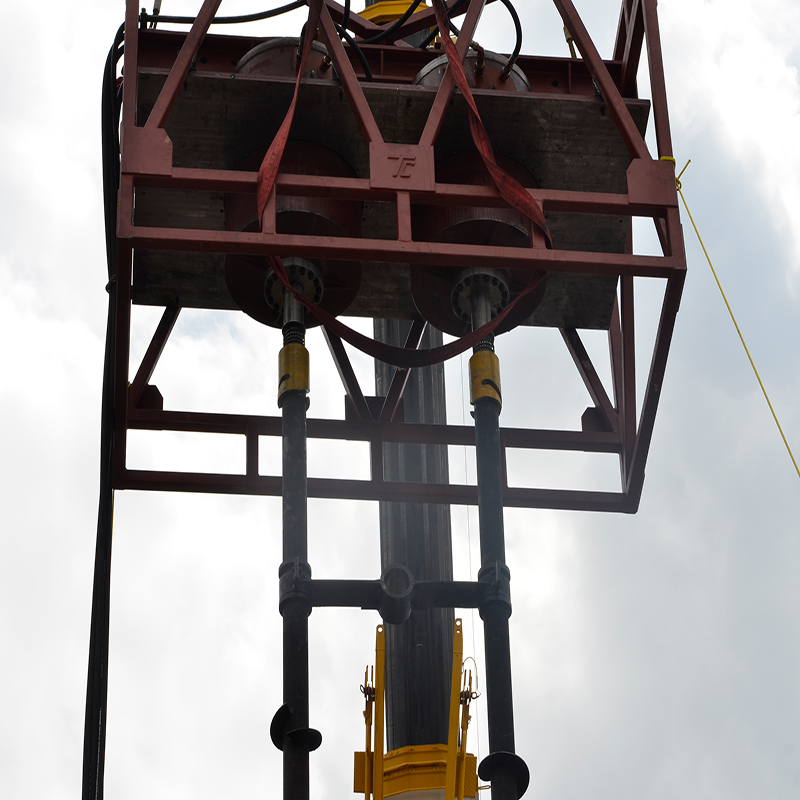

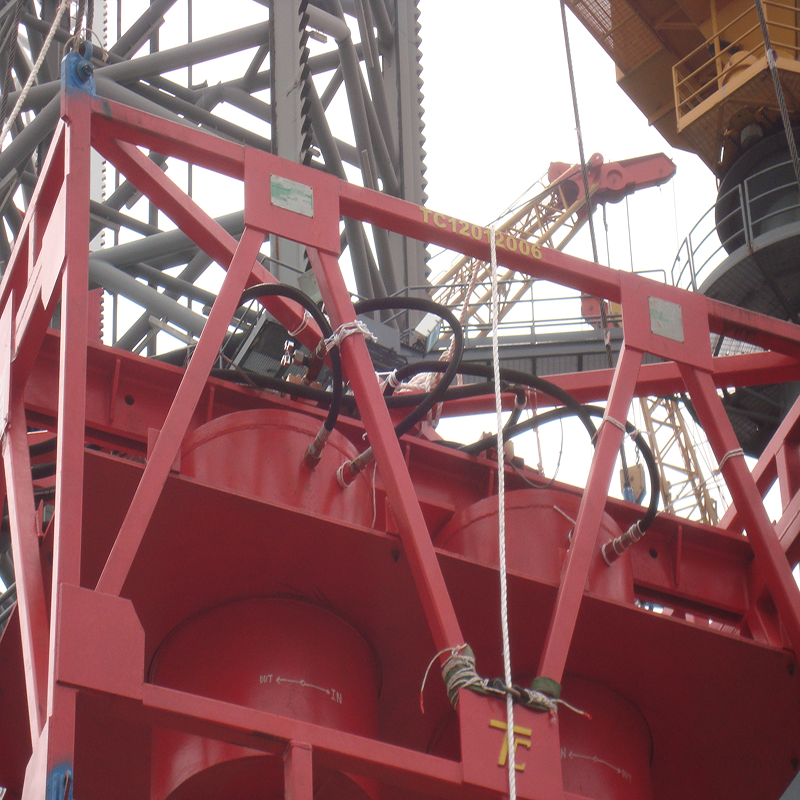

SCREW PILES SYSTEM (18.1 TON DRILLS HYDRAULIC
ANCHOR PIPE)
Total weight of the equipment: 6000Kg
The weight of the structure: 2000Kg
Payload weight: 4000kg
Type: DNV type E
Operational Class : R45
Design Temperature: -20°C
Rated torque: 28000 Nm
Actual working torque: 14000 Nm
Fixable pipeline diameter: 6 – 36 inches
Rotational anchor pipe diameter: 2 – 6 inches
Rated speed: 0 – 16 rpm
Hydraulic system pressure: 250 bar
Maximum working depth: 25 meters
In stock (can be backordered)
SKU: APS-1
Category: Pipe System
