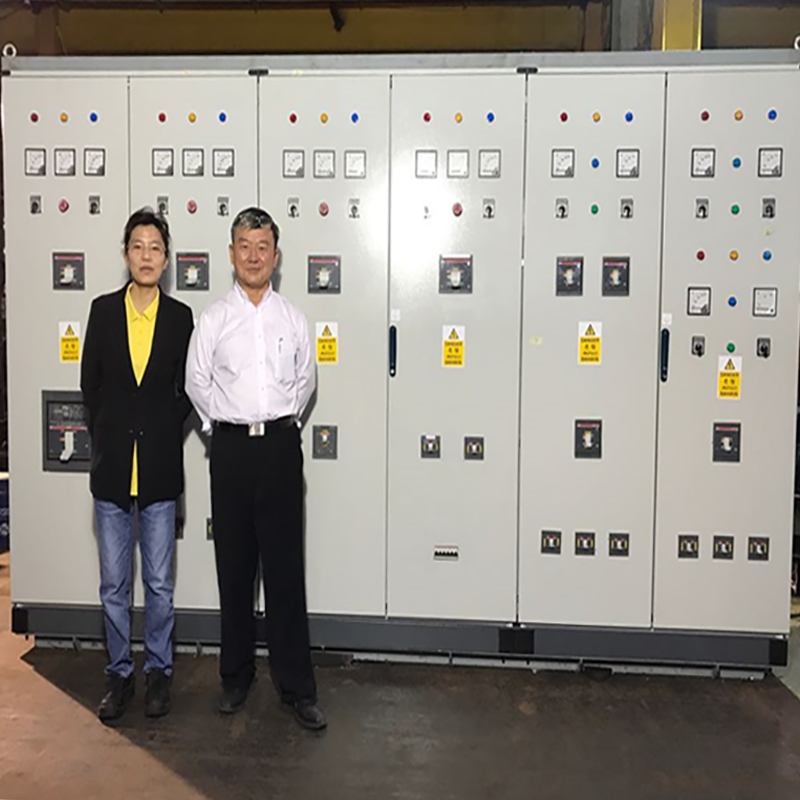

ELECTRICAL SWITCH BOARD
$2,679.00
TO DESIGN AND FABRICATE NEW MAIN SWITCHBOARD FOR THE
MODIFICATION OF MAIN GENERATOR FOR VESSEL SPECIFICATIONS PER SET
Dimension: Est 2000(H) x 1200(W) x 600(D)
The Control Features are as follows:-
4 no. Indicator Light L1 for AC 3P 450V/60Hz
4000amp-1925A. No.1 Generator Incoming Power Source
4 no. Indicator Light L2 for AC 3P 450V/60Hz
4000amp-1925A. No.1 Generator Incoming Power Source
4 Units Incoming Voltmeter
4 Units Frequency Meter
4 Units Input Ammeter
4 Units Voltage Switch
4 Units Generator No.1 START Indicator Light
4 Units Ammeter Switch
4 Units Input Power Source ON Indicator Light & Push Button
4 Units Emergency Power OFF
4 Units Input Power Source OFF Indicator Light & Push Button
4 Units No.1 Generator 1925A Power Switch
4 Units of ACB 3P x 450V/60Hz/2500amp
Dimension: Est 2000(H) x 800(W) x 600(D)
Current Transformer 2500amp 12 Pcs
Ammeter 0-4000amp 1 unit
Current Transformer -4000amp /5amp 3 Units
Current Transformer 2 Phase 450V-230V 500KVA 1 Unit
In stock (can be backordered)
