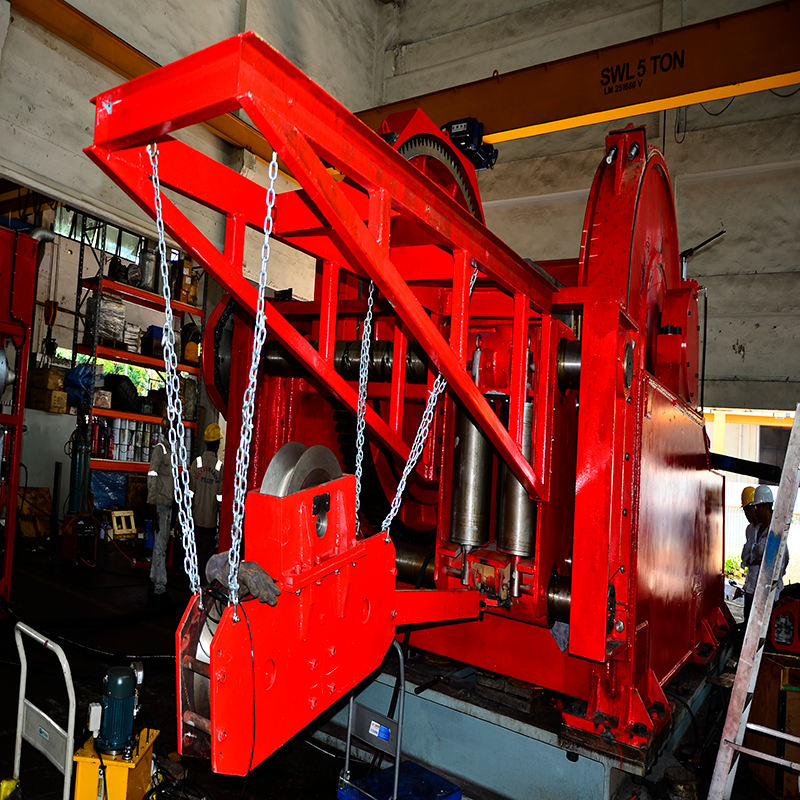

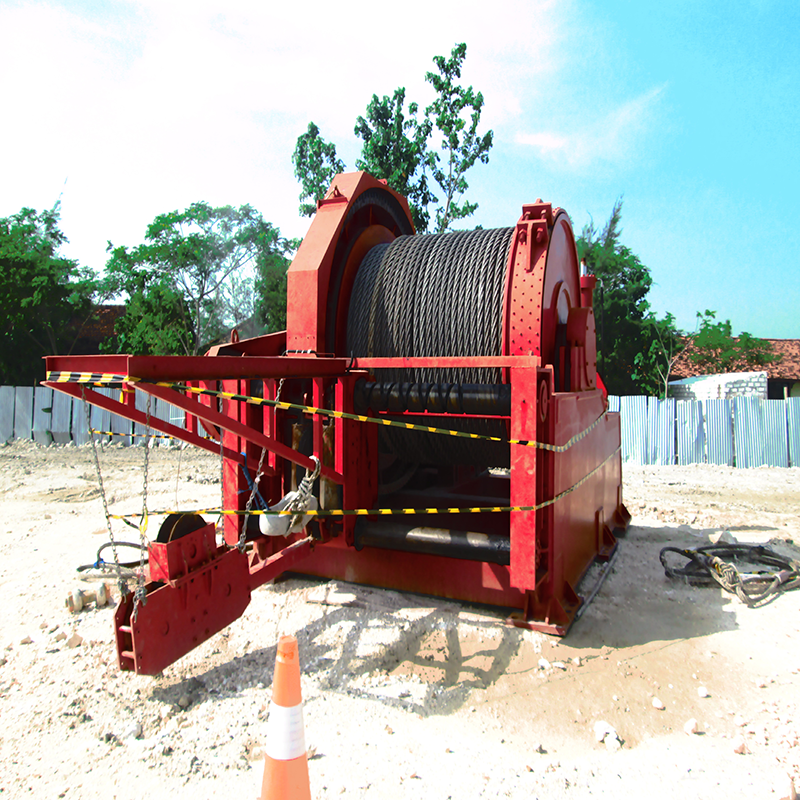

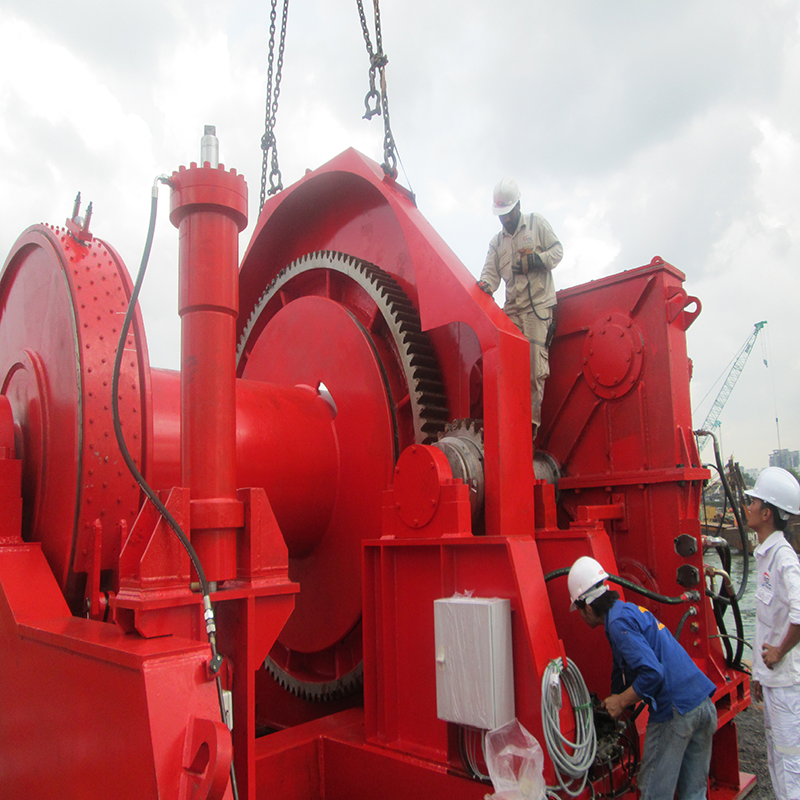

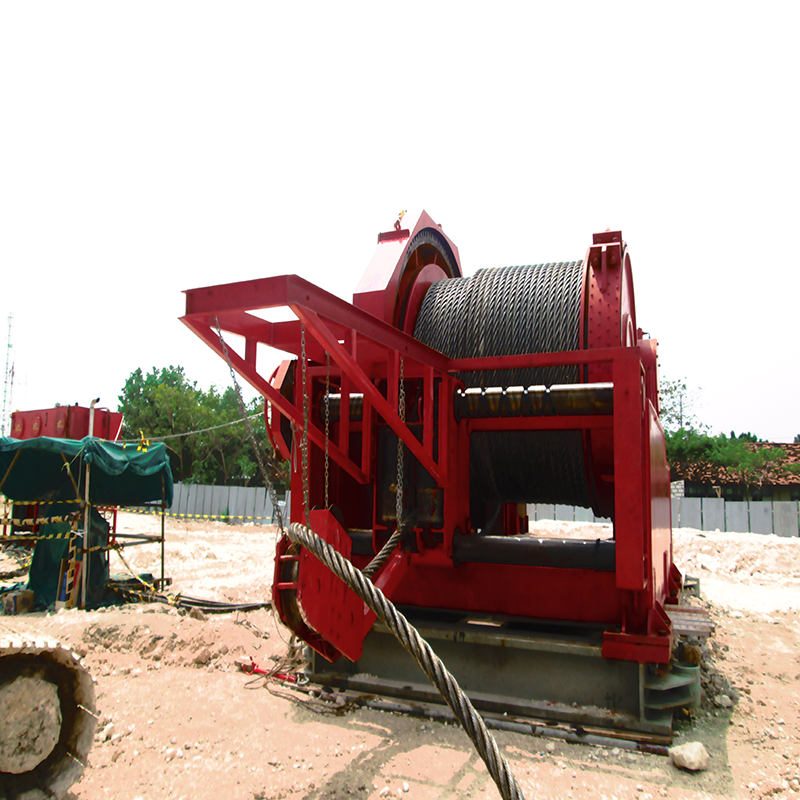

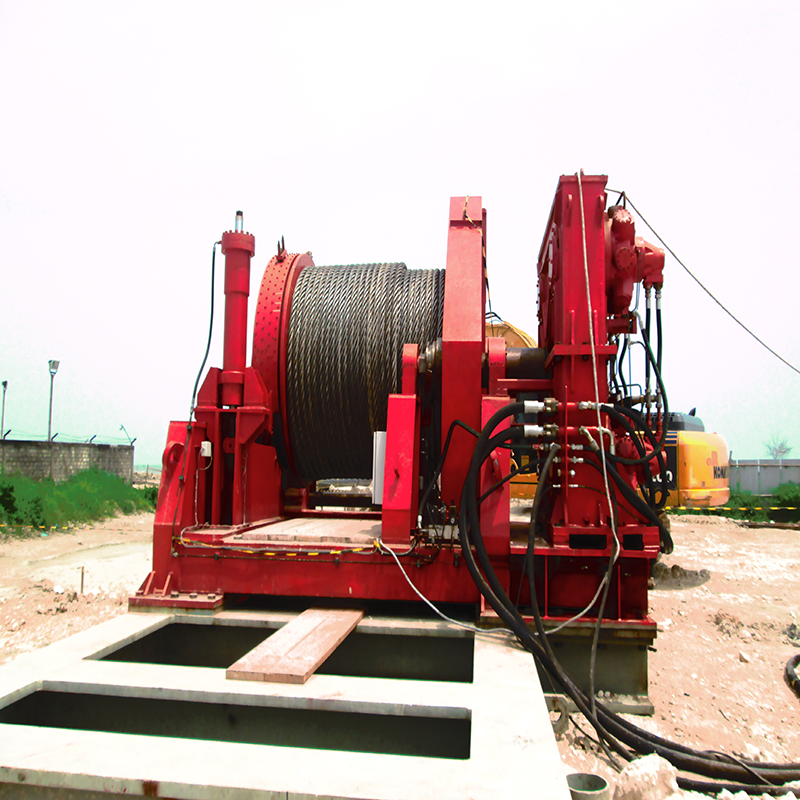

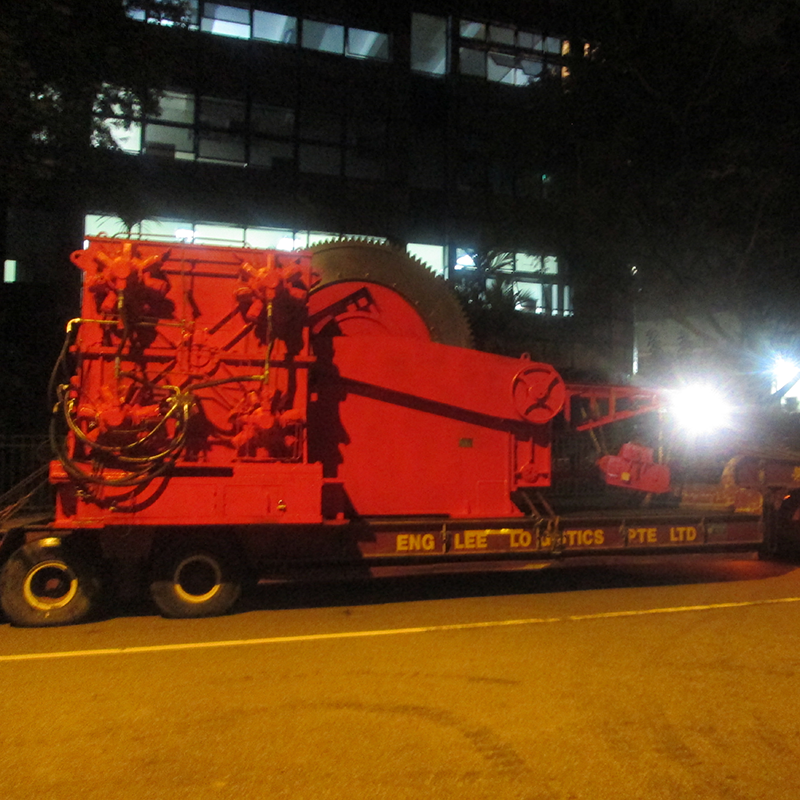

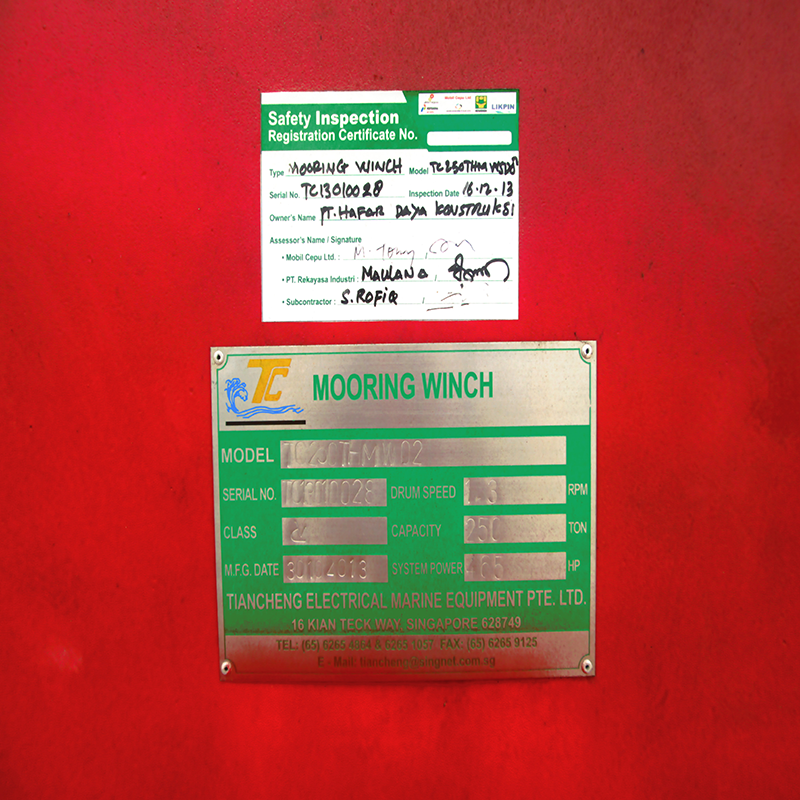

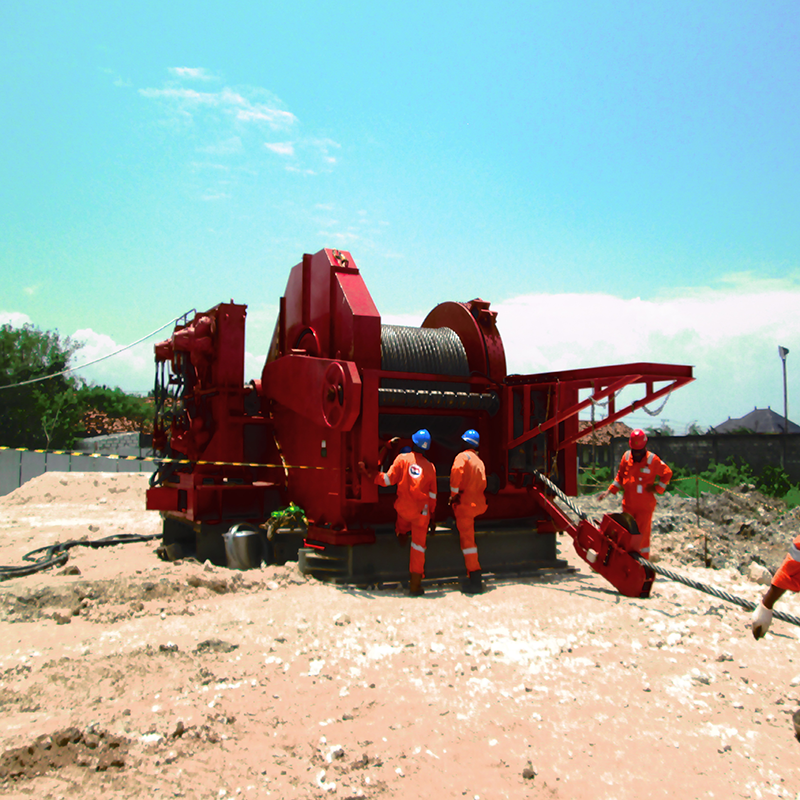

250 TON HYDRAULIC MOORING WINCH FOR OFFSHORE POSITIONING CONTROL

$2,679.00

Rated Pull :250Ton X 5m/min.(1ST layer)Low Speed
:120Ton X 10m/min(1st layer) High Speed
Top layer Pull :150Ton X8.4m/min.(8th layer)Low Speed
:70 Ton X 17m/min.(8th layer)High Speed
Rope Diameter :Dia.72mm
Drum Capacity :1000m(8 layers)
Brake Holding :350Ton(automatic static,1st layer)
Drum Brake :Hydraulic Auto-brake
Clutch :Manual Operated jaw clutch

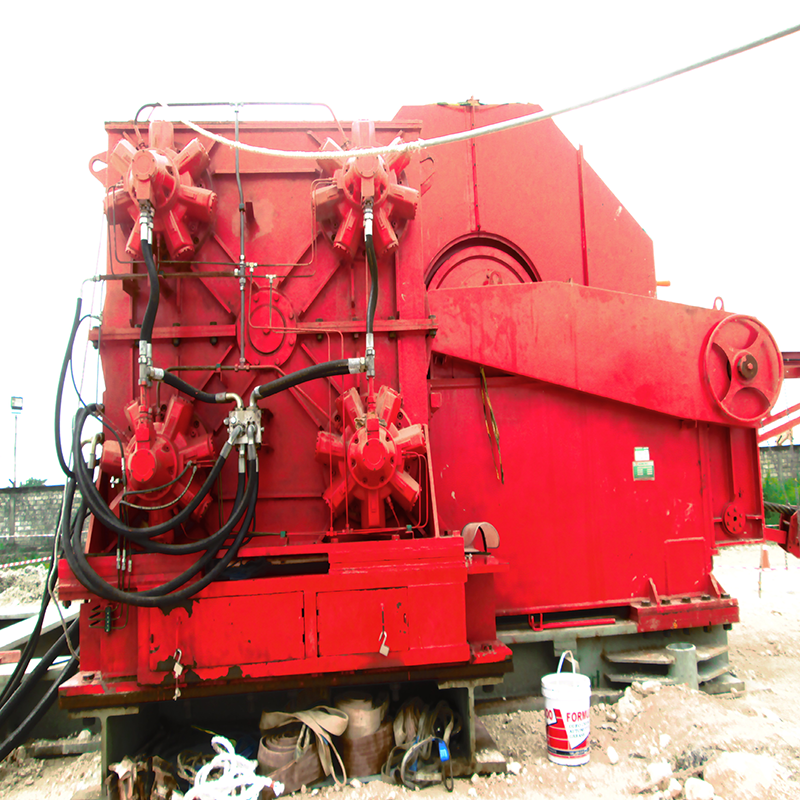

Hydraulic Motor : Staffa Motor

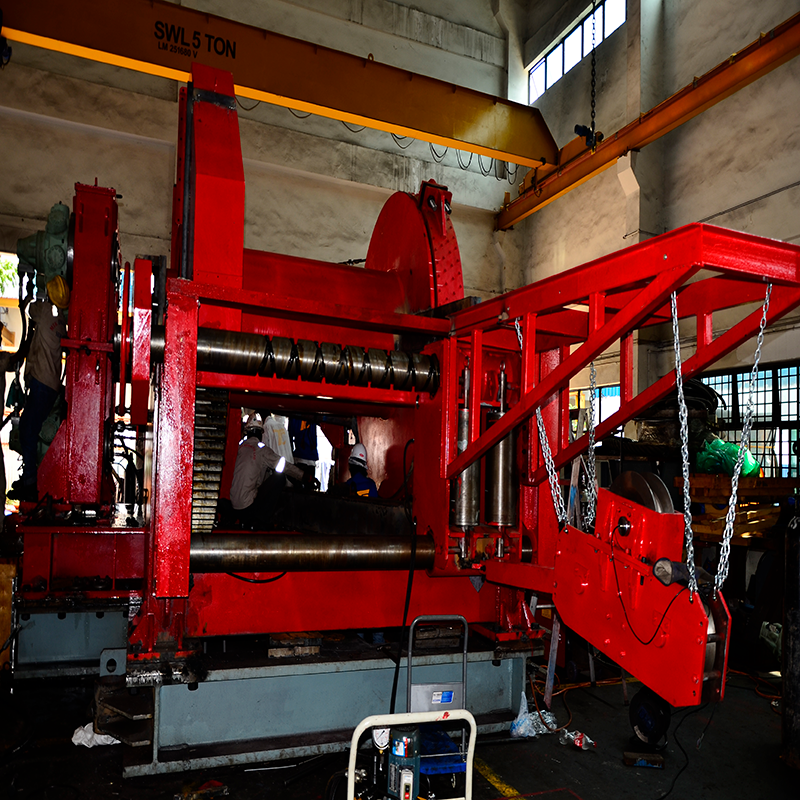

Spooling :Automatic spooling device
Control :Local Control Stand
Power :300kW

In stock (can be backordered)

Add to Quote Request
SKU: HMW Category:
Description

AI-Driven Mooring Positioning Control

The 250 Ton Hydraulic Mooring Winch can be integrated into an AI-driven mooring positioning control system for offshore engineering vessels.
Tiancheng’s intelligent mooring control technology connects vessel positioning information with mooring winch operation to support automated mooring winch control and offshore positioning control.
For multi-point mooring applications, coordinated control of multiple mooring winches can support synchronized vessel positioning and planned trajectory control.
