0.5 TON 20 M CARGO CRANE ELECTRO-HYDRAULIC

$85,000.00

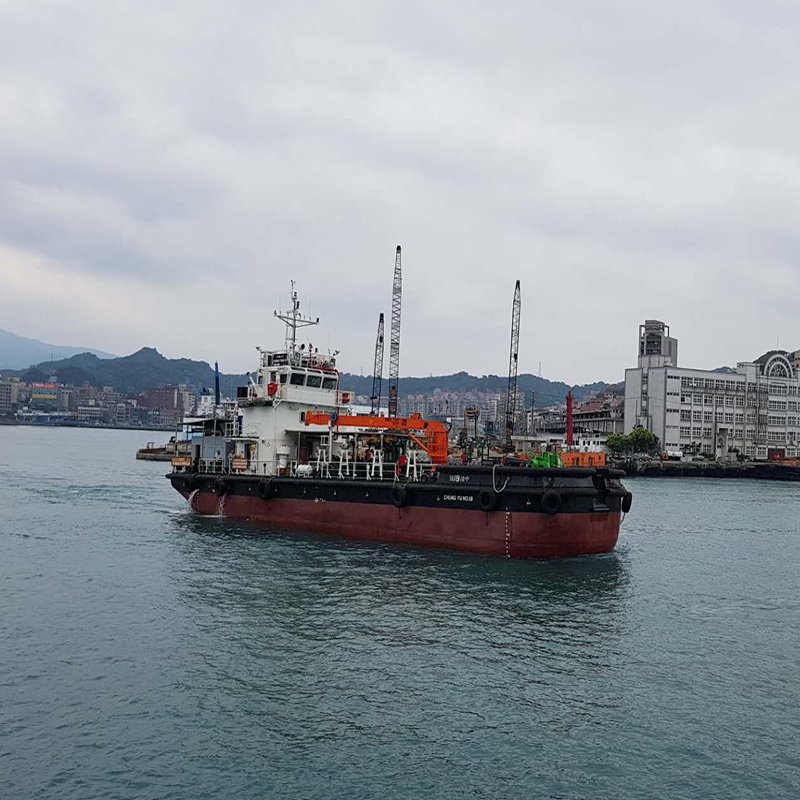

0.5 TON 20 M CARGO CRANE ELECTRO-HYDRAULIC TELESCOPIC BOOM CRANE
One Electro-hydraulic telescopic boom crane shall be provided on main deck. Lifting capacity shall
Not less than 500kg whenever crane’s boom overhangs either ship’s side by approx. 1 meters in
Horizontal direction and approx. 20 meters above main deck in the vertical direction. Minimum
Working radius shall not be more then 3m and lifting capacity shall be 1500kg at a radius of 3m.
Safe working load (S.W.L) shall be less than 2.97t. Hydraulic power units and the electronic
control component on crane shall be EXPLOSION PROOF TYPE, and locally controlled by hydraulic control valve.
Hydraulic power unit shall be located in the foundation of crane (of explosion proof type) or at suitable compartment.

Boom rest is set in front of wheel house to fix and store the arm of crane so that it can be secured above the Awning.
When crane is at the maximum of loading status, its particulars shall be summarized as follows:0
1) Hoisting speed: 0 – 20m/min. (continuously variable transmission)
2) Luffing speed : 120 second (rmax. To rmin.)
3) Slewing speed : 0 – 0.5rpm (360 ° slewing, continuously variable transmission)
Hose Handling Crane certificate shall be certified by the Class.
TECHNICAL SPECIFICATIONS PER SHIPSET
Safe Working Load : 1.5T/0.5T
Working Radius : 2.8 – 3m – 6 – 20m
Hoisting Speed : 0 – 20m/min.
Hook Travel : 30m
Slewing Speed : 0.5 RPM (360° Continuously)

Luffing Speed : 120S
List / Trim : 5° / 2°
Power : 11kW, 440V, 4 poles, 60Hz, 3PH, Explosion-proof type.
Control
Boom : IN/OUT – Manual operated hyd. joystick
Boom : UP/DOWN – Manual operated hyd. joystick
Boom : Slewing CW/CCW – Manual operated hyd. joystick
Winch IN/OUT : Manual operated hyd. joystick
Class : CR Certified

In stock (can be backordered)

Add to Quote Request loading
SKU: CCEH-1 Category: Crane System
Share
Facebook
  • Description
Description

Our Winches are class and have approvals from DNV, ABS, BV, CCS and Llyods

Purpose of a Winch:

  • To lift and lower loads in a controlled manner whilst controlling the position and protecting the wire rope.
  • The installed power should be sufficient to move the load at the required speed.
  • The design to include both static and dynamic brakes.
  • The winch specification is defined by rope size and length, line speed and line pull.

Mooring Winch

  • Used to moor the vessel forward while laying pipes.
  • Has global positioning dynamics to guide the vessel on a straight course.
  • Enables the vessel to move in a uniform direction while laying pipes.
  • On some occasions, operators use mooring winches as anchor winches to anchor a vessel down while not in operation.

Abandonment and Recovery (A/R) Winch

  • Is used when the pipe lay operation cease due to poor weather conditions. When weather condition improves, this winch is used to recover the pipes from the sea-bed to continue its pipe lay operations.
  • While laying pipes, there could be some damages to the joints between each pipe and this winch is used to recover the pipes from the sea-bed and bring it on deck for further repairs.

Riser Pull in Winch

  • Riser Pull in Winch. This winch is used to pull the Riser or Umbilical from the sea bed. Such risers can weigh as much as 200 ton.

ANCHOR WINDLASS

Used to lift and lower a heavy anchor. Anchor chain wraps around a gypsy wheel which contains pockets to engage the links of the chain. Gypsy wheel is driven through a gear ratio to the prime mover to achieve a designed load and speed. Band brakes are fitted to the gypsy for controlled emergency release when the windlass is not active.

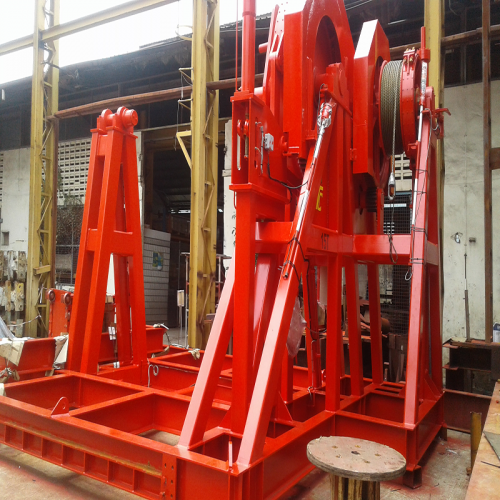

DOUBLE DRUM MULTI-PURPOSE WINCH

Designed as a double drum 250 ton waterfall compact multi-purpose winch system. The A/R Drum is used for deep water pipe laying application. Mooring handling drum (M/H) is used for deep water anchor handling and mooring. Mooring drum is fitted with a range of chain handling gypsy wheel attachment. Design allows the power of all 6 motors to be directed to either the A/R or M/H drum.

ANCHOR WINDLASS

Used to lift and lower a heavy anchor. Anchor chain wraps around a gypsy wheel which contains pockets to engage the links of the chain. Gypsy wheel is driven through a gear ratio to the prime mover to achieve a designed load and speed. Band brakes are fitted to the gypsy for controlled emergency release when the windlass is not active.

ANCHOR WINDLASS

Used to lift and lower a heavy anchor. Anchor chain wraps around a gypsy wheel which contains pockets to engage the links of the chain. Gypsy wheel is driven through a gear ratio to the prime mover to achieve a designed load and speed. Band brakes are fitted to the gypsy for controlled emergency release when the windlass is not active.
