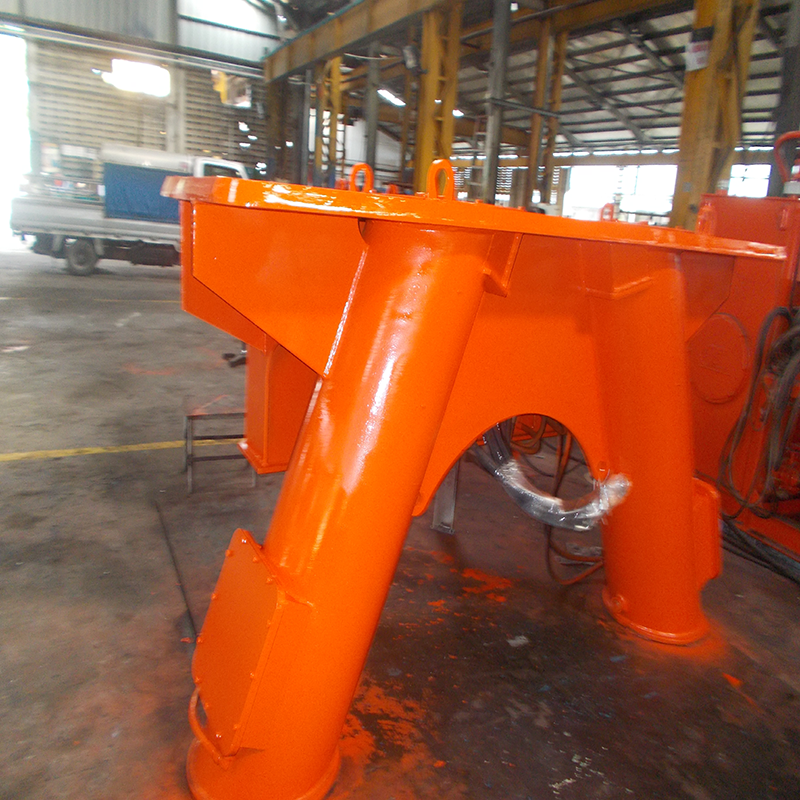

200 TON STRONG JAW & TOWING PIN
$2,679.00
200 TON STRONG JAW & TOWING PIN
Model : TC200TSJTP02
Type : 200Ton Strong Jaw & Towing Pin
Tow Pin :200 Ton SWL
Stroke : 700mm above deck
Strong Jaw : 200 Ton SWL
Chain Size : Max. 60mm φ
Wire Size : Max. 50mm φ
Emergency Release Time : 3-4 Seconds
1 no. Indicator Light & Push Button for Alarm RESET
1 no. Indicator Light for Heave FWD STBD side Winch No. 2 Operation
1 no. Indicator Light for PAY-OUT FWD STBD Side Winch No. 2 Operation
1 no. Indicator Light for STOP FWD STBD Side Winch No. 2 Operation
1 no. Indicator Light for TRIP FWD STBD Side Winch No. 2 Operation
1 no. Indicator Light for Drum Clutch IN
1 no. Indicator Light for Drum Clutch OUT
1 no. Indicator Light for Drum Brake ON
1 no. Indicator Light for Drum Brake OFF
1 no. Indicator Light for Heave AFT STBD Winch NO. 4 Operation
1 no. Indicator Light for Pay Out AFT STBD Winch No. 4 Operation
1 no. Indicator Light for STOP AFT STBD Winch No. 4 Operation
1 no. Indicator Light for TRIP AFT STBD Winch No. 4 Operation
1 no. Indicator Light for Drum Clutch IN
1 no. Indicator Light for Drum Clutch OUT
1 no. Indicator Light for Drum Brake ON
1 no. Indicator Light for Drum Brake OFF
1 Unit Joystick for HEAVE / PAYOUT FWD STBD SIDE NO. 2
1 Unit Joystick for HEAVE FWD STBD SIDE NO. 2
1 Unit Emergency STOP
1 Unit Joystick for HEAVE / PAYOUT AFT STBD SIDE NO. 4
In stock (can be backordered)
